Infiniti Challenger UV Flatbed Printer FY-2030A

Infiniti Challenger UV Flatbed Printer FY-2030A

Download the PDF Catalogue

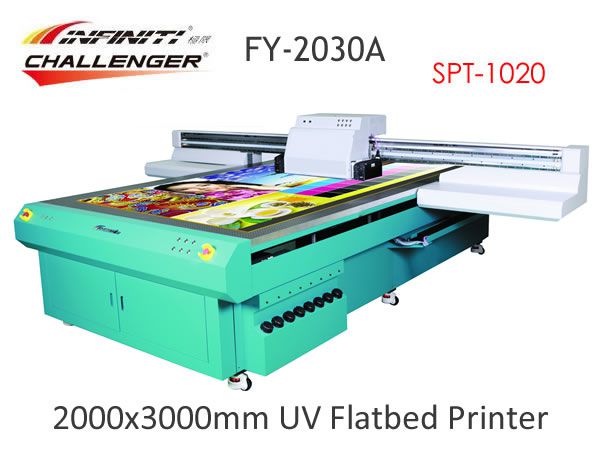

Infiniti FY-2030A UV Flatbed Printer

( PIZEO SEIKO SPT1020/35pl printheads, High resolution and speed.widely apllication.

Adopts industrial stainless steel piezo print head which has 1020 nozzles each to achieve both high speed and high resolution

Electronic Unit origin in United Kingdom comprises of dual UV lamps and power supply , making the ink fast-solidified.

Integrated design with multiple output power levels , varies from 40 watts/cm to 100 watts/cm, can print according to your requirements, which entirely measure up to industrial standard.



Machine Model

FY-2030A UV FLATBED PRINTER

Printhead

Seiko SPT 1020 (CMYKlclm+W / CMYK+W / 2xCMYK+2W / 2xCMYKlclm+2W)

Printing Size

2000mm x 3000mm

Printing Speed

Standard

360x1440  4pass   51sqms/h 2xCMYK       25.7sqms/h  CMYKlclm

production mode

360x2160  6pass   36sqms/h 2xCMYK       18sqms/h     CMYKlclm

quality mode

360x2880  8pass   25sqms/h 2xCMYK       12.8sqms/h  CMYKlclm

Printing Thickness

Up to 100mm

Media Type

Acrylic, APC, Wood, Ceramic, Cystosepiment, Metal Board, Glass, Carbon etc.

Curing method

LED-UV Lamp curing, water circulation heat dissipation

Ink Type

UV Ink (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White)

Auto Cleaning System

Independent positive pressure cleaning for printhead head for each color;the printhead for white color has anti-clog function and flash jet function

Data Interface

USB 3.0

Voltage and Power

UV Printer: AC 220V/ 2500W
Platen absorption device: AC220V, 3000W

Machine Dimension

L 3956 x W 4250 x H 1460 mm





Photos

AllSign Printer -Infiniti/Challenger FY-1325A UV Flatbed Printer. AllSign Printer - Infiniti/Challenger FY-1325A UV Flatbed Printer.

                             Infiniti FY-2030A                                                                           Infiniti FY-1325A

Infiniti Challenger UV Flatbed Printer FY-2030A AllSign Printer - Infiniti/Challenger FY-1325A UV Flatbed Printer.




Do you know 2030A UV PRINTER can be used in which industries?









< /P>








1) Application in construction and decoration industries:

2030AUV Flatbed Printer can print your needed pictures directly on the surface of various materials such as ceiling board,

fire-proof plate, aluminum-plastic board (ACP), density board, stone, ceramic and glass; make your construction and decoration,

both indoor and outdoor, unique, low-carbon and environmentally friendly.

2) Application in mural painting and decorative painting industries:

2030AUV Flatbed Printer can print various pictures on the surface of ceramic and wood; meet the indicator requirements

of wear resistance, water-proof and radio resistance; achieve a high-efficient and instant processing progress while suiting the

needs of low-carbon, environmentally friendly and individualized decoration; bring more vibrant and artistic elements to the industry of painting and decoration.

3) Application in advertising and sign industries:

FY-2030A UV Flatbed Printer can print needed adverting patterns directly on the surface of various materials such as KT board,

foamed PVC sheet, plexiglass plate, PVC, PET, ACP, acrylic board, density board and metal board; remain non-degumming,

non-foaming, low-carbon, environmentally friendly, time-saving and high efficient; widely applicable for advertising and sign industries.




Photos

AllSign Printer - Infiniti/Challenger FY-1325A UV Flatbed Printer. Infiniti/Challenger FY-1325A UV Flatbed Printer AllSign Printer - Infiniti/Challenger FY-1325A UV Flatbed Printer. Infiniti/Challenger FY-1325A UV Flatbed Printer AllSign Printer - Infiniti/Challenger FY-1325A UV Flatbed Printer. Infiniti/Challenger FY-1325A UV Flatbed Printer AllSign Printer - Infiniti/Challenger FY-1325A UV Flatbed Printer.

The picture is only for reference,please make the object as the standard.
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along with the chnage of printheads. When printing with serveal printers at the same time, a difference in printing colors may exists due to a difference exist in every single printer.
But as far as we know, most for the operation is similar for different printer.
